Applications:
>.Low temperature&high humidity environment
>.High temperature&high humidity environment
ZCK series Desiccant Dehumidifier combined with air conditioning units can reach temperature 23?C /relative humidity 5-70% requirements.





Features:
(1)Can accurately reach required absolute mositure content in air,the outlet air temperature can be controled by the user.
(2)Imported super silica gel rotor.
(3)Process airflow:200m3/h-25000m3/h,can be customzied.
(4)Siemens PLC+User friendly interface control system.
(5)Aluminum alloy frame,anti-cold bridge.
(6)Body modularization design,foam injected double wall casing.
(7)Faceplates filled in high density polyurethane foaming plastic with high pressure vesicant.
(8)Pre-filter,rotary wheel with drive motor,blower,reactivation hearter and fan,temp.&sensor inside.
(9)Electric,steam,heat transfer oil or convert type is option.
(10)The surface plate of bottom board is made of 304 stainless steel.Can be connected with cooling unit or stand alone.

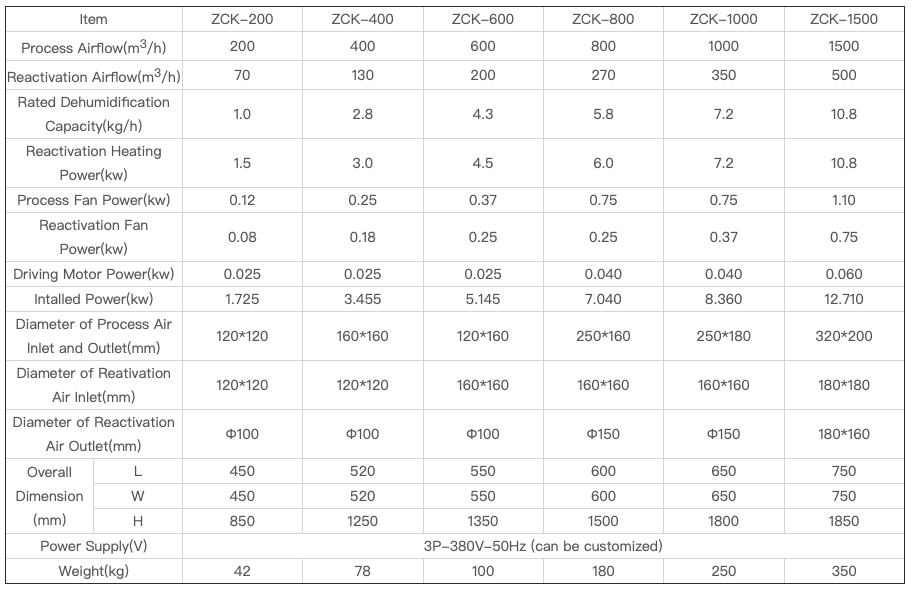

PRODUCT SPECIFICATIONS:



Successful Project：
